Folder Gearbox Carton Gluer Machine Automatic Or Semi Auto 2800mm

Brand Name : Hh

Model Number : 2800mm

Certification : CE

Place of Origin : Hebei, China

MOQ : 1

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 10 sets every month

Delivery Time : 15-30 days

Packaging Details : plastic

name : SAutomatic Or Semi Auto Carton Folder Gluer Machine

warranty : one year

Voltage : 380v/50hz 220v/60hz

Driven type : electric , pneumatic

function : Carton Folder Gluer Machine

speed : 0-60pcs/min

Core Components : PLC, Gearbox, Gear

Condition : new

Max size (L+W)*2 : 2800mm

High of feeder : 1200mm

Weight : 4000kg

Key Selling Points : Easy to Operate

Contact Now

Cardboard Box Four Six Corner carton box folder gluer machine

Features :

1)the average speed of gluing box is 8000-10000pcs / hour, speed is very fast , greatly improve production efficiency.
2) automatic feeding, automatic glue, automatic folding, automatic calibration, automatic counting, only two people can complete the whole process.
3) the suction belt feeding way, simple structure, fast speed, paper accurately.
4) the nail tooth belt feed, feed accuracy;and it has secondary indentation function, make folding cartons more accurately.

Feeding unit :leather belt feeder with vacuum suction

1.feeder belt made of leather belt with holes , vacuum suction for supporting paperboard feeding .
2.Available for feeding bent paperboard .
3.Clutch and break function adopted in feeding unit ,enable to feed paper or stop separately ,easy to operation and control.

Secondary correction unit:
eliminate the size of the different mouth, improve Percent of pass.

Correction by differential speed unit :
Using belt speed differences to correct the folding again .

Receiving paperboard&shape adjusting unit :
receiving paperboard unit can automatic counting, shape adjusting then stacking , all carton can be piled up according to a certain quantity , then output , high speed and precision.

Main Technical parameters

Model	2000	2400	2800
Max cardboard	1000 x 1200 mm	1000 x 2400 mm	1200 x 2800 mm
Min cardboard	300 x 680 mm	300 x 800 mm	300 x 800 mm
Power required	11.5 kw	11.5 kw	11.5 kw

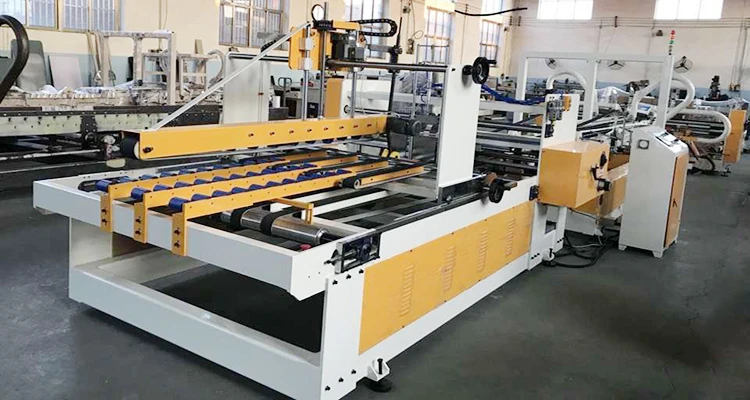

Detailed Images

Folder Gearbox Carton Gluer Machine Automatic Or Semi Auto 2800mm
